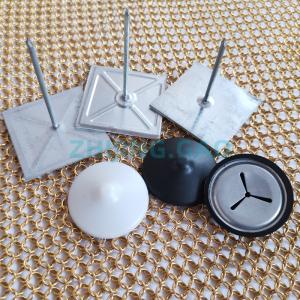

50mm Tape Base Rock Wool Fastener Adhesive Insulation Metal Self Stick Pins
Quick details of Rock Wool Fasteners
- Product name: self adhesive pins, self stick nails, rock wool insulation pins, self stick up hangers
- Pin material: stainless steel. mild steel, aluminum
- Pin diameter in common: 2.7mm or 3mm
- Pin length in common: 38mm, 45mm, 63mm, 90mm, 120mm, 140mm, 160mm, 180mm, 203mm
- Tape base size: 50mmx50mm
- Fixing parts: Self locking washer, dome cap washers, speed clips.
Descripition Of rock wool fasteners
Self Stick rock wool fasteners easily install any type of insulation up to 3.5" thick to air ducts, metal buildings, concrete foundations - even to the underside of wooden roofs. Insulation Hangers are perfect for installing fiberglass or rubber insulation blankets or polystyrene board. Insulation Hangers have a sticker backing to make placing easier. They also have a unique Easy-Peel adhesive backing design so that there isn't any fumbling with the release paper.
Technical date of the self stick rock wool fasteners
| pin diameter | base plate size | self stick pin length |
| 12ga ( 2.7mm/3mm ) | 50mm square w / tape | 1 " |
| 12ga ( 2.7mm/3mm ) | 50mm square w / tape | 1 - 5 / 8 " |
| 12ga ( 2.7mm/3mm ) | 50mm square w / tape | 2 " |
| 12ga ( 2.7mm /3mm) | 50mm square w / tape | 2 - 1 / 2" |
| 12ga ( 2.7mm/3mm ) | 50mm square w / tape | 3 - 1 / 2" |
| 12ga ( 2.7mm/3mm ) | 50mm square w / tape | 4 - 1 / 2" |
| 12ga ( 2.7mm /3mm) | 50mm square w / tape | 5 - 1 / 2" |
| 12ga ( 2.7mm /3mm) | 50mm square w / tape | 6 - 1 / 2" |
| 12ga ( 2.7mm/3mm ) | 50mm square w / tape | 8 " |
Polyethylene foam with aggresive pressure sensitive rubber resin adhesive.
Service Temperature : -40 deg C to +70 Deg C
Highly Resistant to abrasion, corrosion and moisture.
Confirms to European Directive 2000/53 (Lead, Chromium VI, Mercury, Cadmium free)
10 Minutes 180 degree Peel Adhesion : 30 N/25mm
500 Hour static shear ( Stainless Steel) : 0.8 kg/cm3
How to install the Self Stick rock wool fasteners
1, clean the surface 2,Peel off backing 3, stick pin in place 4 ,pressure the pin 5, wait 15-20 minutes
6, Install insulation and secure with self locking washer
Application: The average of 1-10 layers is 6pcs/m2, and the average of 11-20 layers is 7pcs/m2, 21-26, and 9pcs/m2. Any single block with an area greater than 0.1m2 must be anchored, depending on the shape and site conditions; the density of the anchor should be increased around the insulation pins of the sun, under the mouth, and around the edge of the hole. The distance is not more than 300mm, from the edge of the base. Not less than 60mm
Q: Are you a factory or trading company?
A: We are the specialized supplier of insulation pins fastener, can provide the best price.
Q: Where is your factory?
A: Our factory is located in RAOYANG city HEBEI province.
Q: How can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q:Can you make OEM or ODM service?
A: Yes. We can accept OEM service.
Q:How to ensure that every process's quality?
A: Every process will be checked by our quality inspection department which insures every product's quality.
Q: Can you provide some sample before placing orders?
A: Samples are free,Please feel free to contact us.
Q: What is your payment term?
A: T/T,Western Union,L/C,and Paypal.This is negotiable.
Q:What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX etc).Please confirm with us before placing orders.
Q:What is your lead time?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 3-7 days for small quantity,and about 20-30 days for large quantity.
