2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer

Product Categories
Huihao Hardware Mesh Product Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer

Brand Name : HUIHAO

Model Number : Lacing anchor pin

Certification : ISO

Place of Origin : CHINA

MOQ : 20.000 pcs

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 300.000 per 20 days

Delivery Time : 15 days after confirm the order

Packaging Details : the length less 63.5mm, 1000pcs per carton 48 cartons per pallet

Product name : lacing anchor

Material : carbon steel ,stainles steel

Surface treatment : zinc coated ,copper plated

Pin diameter : 2mm 2.7mm 3mm

Pin length : 20-230mm

Head size : 22mmx1mm

Contact Now

14 Gauge mild Steel Lacing Anchors for Heated Removable Insulation Covers

insulation anchors parts

14 Gauge mild Steel Lacing Anchors for Heated Removable Insulation Covers
Material Stainless steel or galvanized steel
Nail dia(D) 12Ga / 14 Ga
Nail length 2.5'' (63.5mm), 4.5''(114mm) , or other length(customized)
Hook base Round or rectangular
Washers Selflocking washers are available in a variety of sizes, shapes and materials

2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer

specification of Stainless Steel Lacing Hook Washers with Two Holes For Fixing Lacing Ring
material materil thickness size hole size
stainless steel 304 1mm 22mm 5mm
type hook length hook width custom

one hole type,

two holes type

hook type

washer type

11mm

5mm

 we can be according to your requirements to design the types

How to Application of Metal Insulation Anchors Pins (Hooks) & Washers

1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.

2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer

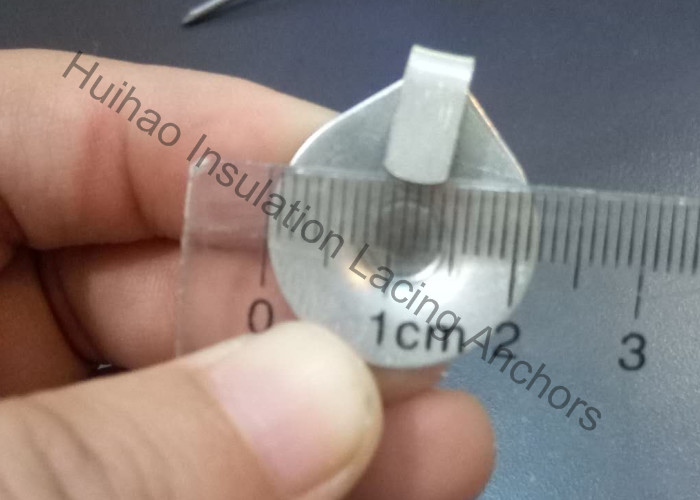

Image details of heat preservation insulation anchor pins

2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer2.7mm Heat Preservation Insulation Anchor Pins With Self Locking Washer
