415v Plastic Recycling Line Pet Bottle Flakes Washing Dewatering Pelletizing

Name: 415v Plastic Recycling Line Pet Bottle Flakes Washing Dewatering Pelletizing
Brand: HUIHAOCUSTOM
Price: 70000 USD

Wholesale 415v Plastic Recycling Line Pet Bottle Flakes Washing Dewatering Pelletizing from china suppliers

Brand Name : HUIHAOCUSTOM

Model Number : mpe-6

Certification : ISO9001-2015

Place of Origin : China

MOQ : 1 set

Price : USD70000

Payment Terms : L/C, T/T

Supply Ability : 100 sets per 28 days

Delivery Time : 10 work days

Packaging Details : PET Bottle Washing Plastic Recycling Machine:Standard export package.

name : Plastic Recycling Machine Plant

Core Component : Bearing, Gearbox, Motor

machine color : blue white or designed by customer

key words : PET Bottle Washing Plastic Recycling Machine

total weight : 25Ton

voltage : 380v/415v/440v

Final product : PET flakes

Warranty of core components : 1 year

Contact Now

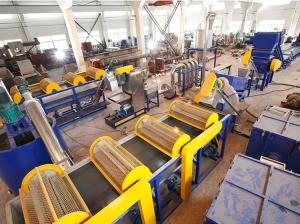

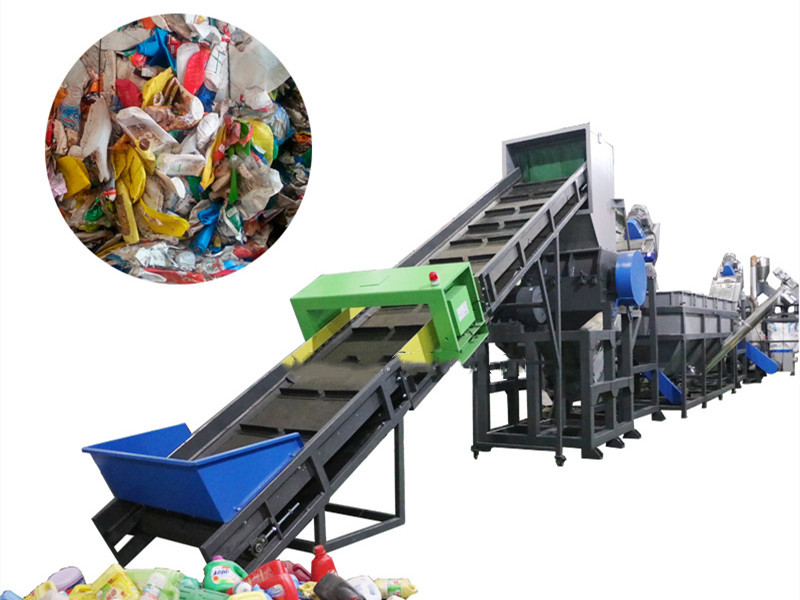

Big Capacity PET Bottle Flakes Washing Dewatering Pelletizing Plastic Recycling Machine Plant

Working Flow OF PET Bottle Washing Plastic Recycling Machine

Belt conveyor → Bale opener machine → Belt conveyor → Pre-washer (trommel) →Belt conveyor → Mechanical label remover → Manual separating table → Metal detector →Belt conveyor → Crusher *2→ Screw conveyor*2 → Floating washer →Screw conveyor → Hot washer chamber *2 →Screw conveyor*2 → High speed friction machine → Screw conveyor → Floating washer → Screw conveyor →Floating washer →Screw conveyor → Horizontal dewatering machine → Drying pipe system → Zig zag air classification system → Storage hopper → Control cabinet

Estimate plant parameters OF PET Bottle Washing Plastic Recycling Machine

Model	CAPACITY (KG/H)	POWER CONSUMPTION	WATER CONSUMPTION(TON/HOUR)	HUMIDITY CONTENT
MT-300	300KG/H	150KW	3ton/h	＜1%
MT-500	500KG/H	230KW	4-5ton/h	＜1%
MT-1000	1000KG/H	270KW	6-7ton/h	＜1%
MT-2000	2000KG/H	370KW	8ton/h	＜1%
MT-3000	3000KG/H	420KW	10ton/h	＜1%

Final Products (PET Flakes) Quality Reference:

NO.	DESCRIPTION	AA level (ppm)	A level (ppm)
1	PVC content	≤25	≤100
2	PE/PP color flake/metal and other impurity content	≤75	≤100
3	Total impurity	≤100	≤150

Features of main equipments

Belt conveyor

Control method:
frequency control

Bale opener machine

Stirring motor:7.5kw*2

Manual separating table

Dimension (L*W*H): 8000*1000*1200mm

Trommel (pre washer)

Dimension(L*W):5000*1500mm;
Material of barrel: Perforated plate, galvanized treatment

Mechanical Label remover machine

Motor Power:11/22/37KW;
Blade material: Tungsten steel, removable. Removing labels from bottles, label remove rate reach 99%

Floating washer

Dimension(L*W): 4500*1500mm
Made of SUS304 stainless steel

Crusher

Motor power: 37/55/90kw
Fix knives quantity: 4 pc
Moving knives quantity: 10 pc
Knife material: SKD-11(from Japan)
crushing with water

Horizontal dewatering machine

Motor power: 22/37/45kw
Rotation speed reach 1500rpm
Main shaft through dynamic balance treatment
Get rid of water

High speed friction machine

Motor power: 22/37/45Kw
Rotation speed 1200rpm
Main shaft through dynamic balance treatment
