304 Stainless Steel Lacing Anchors To Connect Insulation Blankets

Name: 304 Stainless Steel Lacing Anchors To Connect Insulation Blankets
Brand: huihaocustom
Price: 0.1 USD

Wholesale 304 Stainless Steel Lacing Anchors To Connect Insulation Blankets from china suppliers

Brand Name : huihaocustom

Model Number : SS-22

Certification : ISO9001-2015

Place of Origin : China

MOQ : 10000pcs

Price : USD0.1/PC

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 400000 PCS LACING ANCHOR PER 30 DAYS

Delivery Time : 10 WORK DAYS

Packaging Details : 2000 PCS LACING ANCHOR PER CARTON, 48 CARTONS PER PALLET

name : 304 Stainless Steel Lacing Anchors

application : Connect Insulation Blankets

material : stainless steel /mild steel

head size : 22mm

pin diameter : 2mm

pin length : 63.5 mm / 114 mm

related accessories : lacing washer, lacing hook, lacing rings

sample : to be your request

Contact Now

304 Stainless Steel Lacing Anchors Are Used To Connect Insulation Blankets

1. material of lacing anchor: stainless steel 304/316, mild steel

2.hook head size: 22mm , 25mm, 15mmx22mm

3. pin diameter: 2mm, 2.7mm, 3mm in common.

4. pin length : 63mm, 114mm is most popular. others can be customized.

The Lacing Anchor is a fabricated metal anchor consisting of a pin and tabbed ,or hooked washer . Stainless steel is a popular material while some Lacing Anchors are made in Mild steel . Stamped “no ab “ to denote “no asbestos

Specification details of Stainless Steel Lacing Anchors

Item	Material	Head Diameter	Head Thick	Pin Diameter	Pin Length	Hook Size
Mini round head	SS	7/8", 22mm	1mm	2.0mm,2.7mm	63.5mm, 114mm	5x11mm
Round head	SS	30mm	1mm	2.0mm,2.7mm	63.5mm, 114mm	5x11mm
Rectangle head	SS	20x25mm	1mm	2.0mm,2.7mm	63.5mm, 114mm	5x11mm

Images of stainless steel lacing anchor

304 Stainless Steel Lacing Anchors To Connect Insulation Blankets

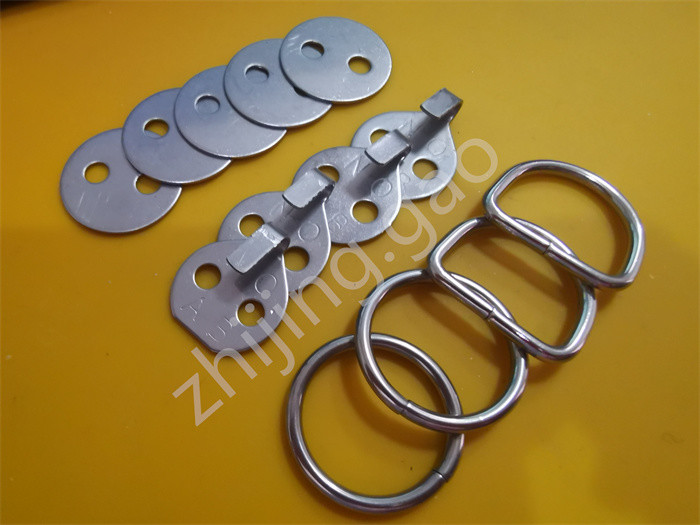

Related accessories

Term	specification details of lacing accessories
lacing hook	material: 1mm thickness stainless steel 304 diameter: 25mm / 22mm Type: single hole / double hole hole diameter: 5mm
lacing washer	material: 1mm stainless steel diameter: 25mm hole diameter: 5mm
lacing O rings	material: stainless steel 304/ 316 size: 3mm x30mm
lacing D ring	material: stainless steel 304 / 316 size:3mm x25mmx30mm

304 Stainless Steel Lacing Anchors To Connect Insulation Blankets

Application :

Lacing Anchors are used in the fabrication of insulation blankets or removable covers/pads. The nail is pressed through the insulation material, so the hook portion sits on the top edge and the nail is secured on the opposite side of the insulation with a washer. The two sides of the blanket can then be "laced" together by the hooks with tie wire..

304 Stainless Steel Lacing Anchors To Connect Insulation Blankets
