Passive Wedge Wire Water Intake Screen, Scale Fish Farm Vacuum Rotary Drum
Specification of water intake screen
_______________________________________________________________________________________________
| surface profiles | support profiles | min.dia/mm | min. slot width/mm | Outside diameter/mm | No.of support profiles |
| 10s | Q25 | 21 | 0.10 | 30 | 8 |
| 11s | Q20/Q25 | 23 | 0.030 | 45 | 10 |
| 12s | 22S | 30 | 0.050 | 57 | 12 |
| 12s | Q25 | 23 | 0.030 | 70 | 18 |
| 12s | Q35 | 30 | 0.050 | 85 | 18 |
| 18s | 22S/Q35 | 30 | 0.050 | 97 | 20 |
| 18s | Q25 | 25 | 0.030 | 110 | 24 |
| 18s | D45 | 300 | 0.20 | 137 | 30 |
| 18s | 10X3 | 300 | 0.20 | 164 | 36 |
| 22s | 22S/35Q | 45 | 0.10 | 215 | 48 |
| 22s | D45 or 10x3 or 25x3 | 300 | 0.20 | 268 | 48 |
| 28s | Q35 | 215 | 0.20 | 305 | 40 |
| 28s | D45 or 10x3 or 25x3 | 300 | 0.20 | 380 | 48 |
| 34s | Q35 | 300 | 0.20 | 460 | 60 |
| 34s | D45 | 300 | 0.20 | 510 | 64 |
| 34s | 10x3 or 25x3 | 300 | 0.20 | 625 | 80 |
| 42s | Q35 or D45 | 300 | 0.20 | 914 | 180 |
| 42s | 10x3 or 25x3 | 300 | 0.20 | | |
Details of Water Intake Screen
___________________________________________________________________________________
Stainless Steel Water Intake Screen Passive Intake Screens consist of V shape profile wire and the longitudinal support rods.
Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive
slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy
constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.

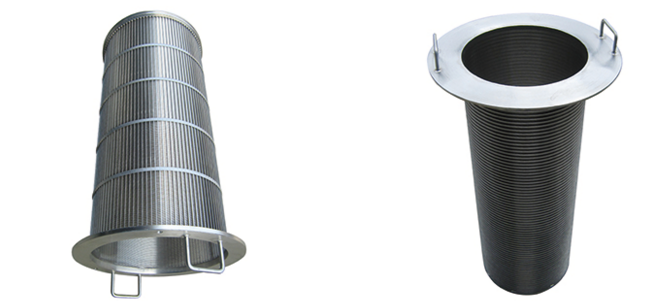

Images of water intake screen
_______________________________________________________________________________________________
To mechanically separate liquids and solid particles, rotary wedge wire drum screens are used. Their construction is based on
wire tubes with supporting and reinforcing structure. The rotary sieves have been prepared to work uninterruptedly, maintaining
high efficiency and at the same time low consumption of energy. The drum screen is also self-cleaning.
package of water intake screen
___________________________________________________________________________________
