SS304 Lauter Tun Mesh Wire Filter Screen, Wedge Wire Curve Screen Bow Screen
product details of wedge bow screen
_____________________________________________________________________________________________
SS304 316 Lauter Tun mesh wire filter Screen For water treatment consist of V shape profile wire and the longitudinal support rods.
Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot
have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction
and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
| Length Range | Up to 6000mm |
| Width Range | Up to 6000mm |
| Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) |
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2.5 | 2x3 | 2x4 | 3x5 |
| Support Rod | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.5*2.5 2x3 | 2x3 | 3*5 | 3x5 | 3x5 4*6 5*8 |
| Angle | 90°,120°,140°,150°,160° etc. |
| Arc height | 10mm,15mm,20mm,50mm or depend on you size of screen panel. |
| Frame | No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request. |
| Note | Customized according to requirement |
specification of wedge wire plate
__________________________________________________________________________________
| Surface profiles | Support profiles | Min. Slot in mm | Standard pitch in mm |
| 12s/12sl | q25/q35 | 0.030 | 22 |
| 12s | q35/10x3 | 0.100 | 35-100 |
| 18s | q35/10x3/25x3 | 0.100 | 35-100/70 |
| 22s | Q35/10x3/25x3/50x3 | 0.120 | 35-100/70 |
| 28s | Q35/10x3/25x3/50x3 | 0.150 | 35-100/70 |
| 34s | Q35/10x3/25x3/50x3 | 0.150 | 35-100/70 |
| 42s | Q35/10x3/25x3/50x3 | 0.150 | 40-100/70 |
| 50s/50sc | 10x3/25x3/50x3 | 0.150 | 45-100 |
| pitch = distance between support profiles |

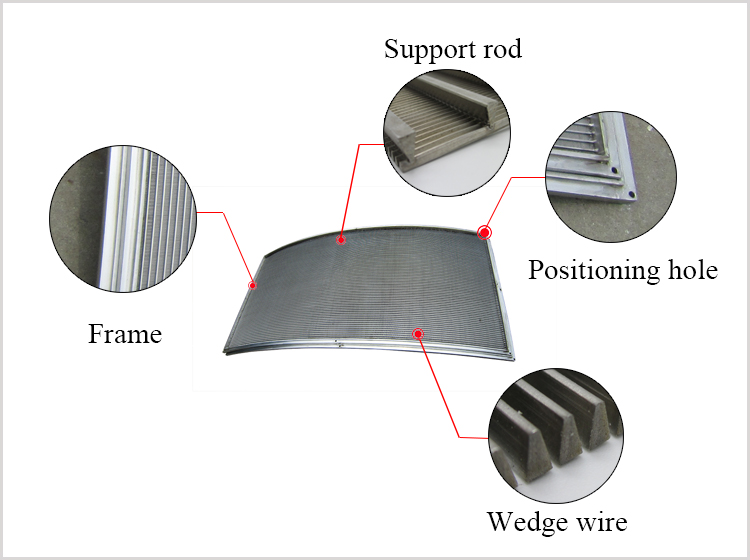

pictures of wedge wire bow screen
__________________________________________________________________________________
If you need the quotation, please advise us:
1.Material: 304 or 316SS wedge wire?
2.Slot: 0.2mm-5mm, which one?
3.Profile wire size: 1x2mm, 2x3mm etc
4.Support bar size: 2x3mm, 3x4mm etc
5.For rotary screen drum, please advise us the outside diameter and length; for screen, please advise us the width and length.
6.If you have drawings, please send us.
Our grilles can be designed and manufactured for unusual shaped stair treads (such as spiral or helical), we can also include a
series of cut-outs or recesses in the wedge wire stair treads if needed. All of our wedge wire stair treads are designed to be heel
safe where required and we can apply an anti-slip treatment to the grille. The stair treads are supplied with a frame on all four
sides, enabling ease of installation and maintenance.
