12 Gauge Or 14 Gauge Dia Stainless Steel Lacing Anchors with 28mm Round Washer
Quick details of stainless steel lacing anchors
- The Stainless Steel Lacing Anchors,an insulation fastener, is a fabricated metal anchor
consisting of a pin and tabbed, or hooked, washer. Stainless steel is a popular material
while this type lacing anchors is also made in mild steel.
- Stamped "no ab" to denote 'no asbestos', the tabbed head is about an inch across, and
7/16" wide.
- The nail can be 12 gauge or 14 gauge in pin diameter.
- Typical application is for the fabrication of lacing blankets or removable covers with the
anchor assisting in fabricating the blanket plus providing a "seam edge" for lacing two
sides of the finished insulation blanket together including various blanket materials.
- This type anchor is somewhat more economical than the standard Lacing anchor and also
serves to eliminate weight in the overall removable cover or blanket.
Specification Of The Metal Stainless Steel Lacing Anchors
Materials: stainless steel or galvanized steel
Pin Diameter: standard size is 12GA (2.7mm), 14GA(2.0mm), other sizes are available by special order.
Pin Length: 2-1/2" and 4-1/2" are standard. Other lengths available by special order.
Washers: Self-locking washers are available in a variety of sizes, shapes, and materials.
Domed Caps can also be used to cover the tip of the nail.
| Nail Diameter | Nail Length | Head Wide | Head Length |
| 14 ga (.080) | 2-1/2" | 7/16" | 15/16" |
| 14 ga (.080) | 4-1/2" | 7/16" | 15/16" |
| 12 ga (.106) | 2-1/2" | 7/16" | 15/16" |
| 12 ga (.106) | 4-1/2" | 7/16" | 15/16" |
- Wide choice of fasteners for removable insulation blanket
- Provide strong, durable fixings even in elevated temperature applications
- Available in galvanized steel and stainless steel
- Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
- Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")

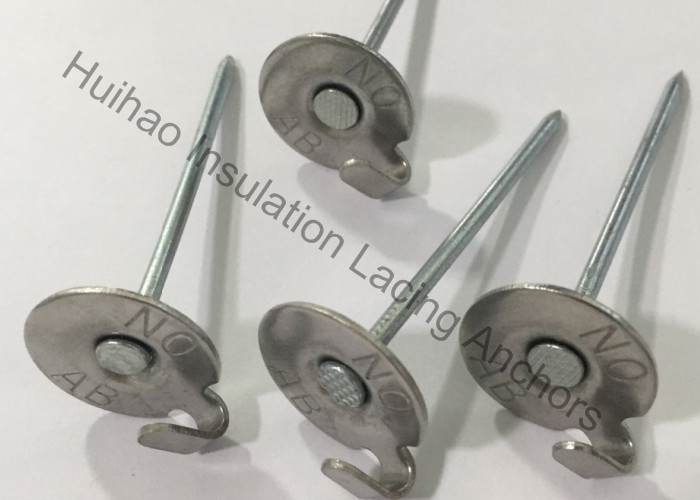

Detailed Image Of The Stainless Steel Lacing Anchors
1) US standard
2) EU standard
3) Australia standard
Application Of The Stainless Steel Lacing Anchors
1. It has anti-temperature sudden change, cold resistance and heat resistance;
2. High bearing capacity, high pressure bearing and good tensile performance;
3. easy to install, no special installation tools are required;
4. It is not easy to deform, moisture, vibration, and good thermal properties after loading.
Package Of The Lacing Anchors
1. length less than 65mm, 1000pcs per carton, 64 cartons per pallets.
2. length 70mm-120mm, 500pcs per cartons,64 cartons per pallets.
3. length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallets.
4. or as your requirement
