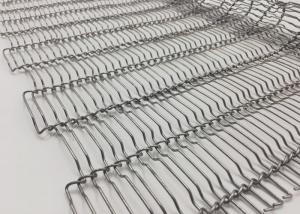

SS316 Woven Flat Drive Belt Decorative Wire Mesh For Fireproof Curtain Mesh
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
Specification of Flat Drive Belt Decorative Wire Mesh
__________________________________________________________________________________
| Pitch and Wire Diameter | Nominal opening between wires | Edge Loop Size | XT Space Width | Minimum Large Space Width | Average Belt Weight (Kgs/m²) | Maximum Tension per Joint - Kgf (N) | Minimum Transfer Outside Diameter (grooved) | Typical Open Area (%) |
| 7.26 x 1.6 | 5.66 | 7 | 22.23 | 50.8 | 2.9 | 6.8 (66.7) | 19 | 71 |
| 12.7 x 1.83 | 10.87 | 7 | 22.23 | 44.45 | 2.7 | 8.2 (80) | 25 | 78 |
| 9.6 x 1.83 | 7.77 | 8 | 22.23 | 57.15 | 3.1 | 8.2 (80) | 25 | 74 |
| 9.6 x 2.08 | 7.52 | 8 | 25.4 | 82.55 | 3.75 | 10 (98) | 25 | 72 |
Flat Drive Belt Decorative Wire Mesh are used for treatment of metal products spiral of the same direction are arranged .
1:the sprocket drive ensures postive and stable running
2:the rotation diameter is small so that smooth products transfer is ensured .
3:easy washing is ensured .
4:because of large open area , high air permeability and dehydration capacity are ensured .
5:postive sprocket drive ensures stable running .
6:reinforcement plate links are made for heavy load and high speed .
7:chain is driven by sprocket, meandering does not occur.
8:various types of chain can be applied by adjusting belt pitch
Flat Drive Belt Decorative Wire Mesh with clips
If Flat Drive Belt Decorative Wire Mesh with 1-space joining clips only, use a 1-space clip per every XT space across the width of your belt.
We do however recommend the use of 1-space and 3-space joining clips when applicable (See chart below).
The use of 1-space and 3-space joining clips together will make a stronger belt joint and minimise the number of gaps in the belt
versus using 1-space clips only.

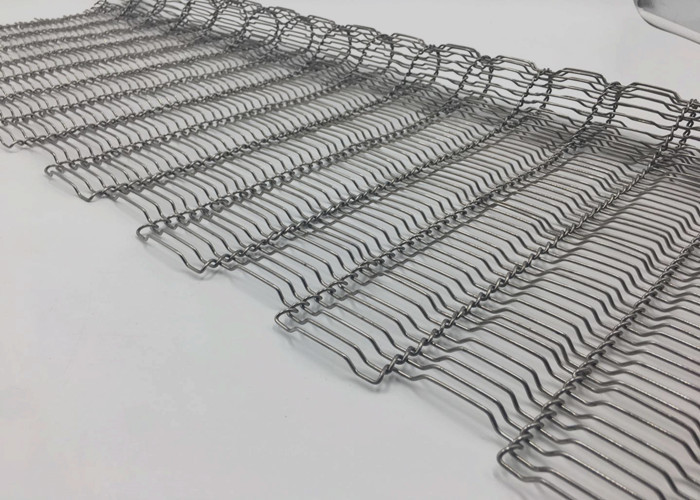

Images of Fireproof Flat Drive Belt Mesh
___________________________________________________________________________________
Package of Fireproof Flat Drive Belt Mesh
__________________________________________________________________________________
1. All products are packed in cylindrical shape, length and width are marked.
2. Standard plywood wooden box production surface avoid broken.
3. According to customer requirements brush marks.
4.Overseas warehouse services, double clearing tax, door-to-door service, mainly for the United States, Australia and Europe.
Other areas are pending development.
